Description
Ref.:	04495-60051
Huari No.:	HRK2280

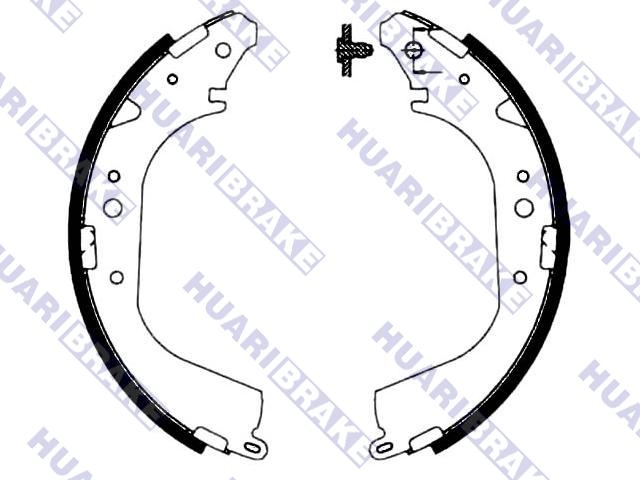

Name:	Brake Shoe
Unit:	PCS
Price:
Length:147.0 Width:60.0 Thicknes:4.0

Application

Years	Engine	Body
TOYOTA - Dyna / Toyoace
96.10~01.07	2000	LY161,162 LY161,162
01.07~07.08	2000	RZY220 RZY220
95.05~99.05	2800	LY161 LY161
99.05~01.07	3000	LY152,162 LY152,162
TOYOTA - Land Cruiser
84.11~90.01	3400	BJ70(V),BJ73V,B BJ70(V),BJ73V,BJ71V,BJ74V
90.01~94.01	3500	PZJ70(V),PZJ77H PZJ70(V),PZJ77HV,
90.01~92.08	4000	FJ75 FJ75
90.01~98.01	4200	HDJ81V,HZJ81V HDJ81V,HZJ81V
91.01~92.01	4200	HDJ80 HDJ80
92.01~99.08	4200	HZJ73,HZJ75 HZJ73,HZJ75
96.04~99.07	4200	HZJ70,73,77,79 HZJ70,73,77,79
96.04~01.08	4200	HZJ75 HZJ75
99.08~04.08	4200	HZJ71V HZJ71V
99.08~04.08	4200	HZJ76K(V) HZJ76K(V)
99.11~04.08	4200	HZJ77,HZJ79 HZJ77,HZJ79
92.08~98.01	4500	FZJ80G FZJ80G
90.04~99.08	4200 TD	HZJ73,HZJ75,HZJ HZJ73,HZJ75,HZJ77HV
TOYOTA - Land Curiser 70 (Euro)
88.01~92.01	2400
92.01~97.01	2400
88.01~92.01	3000
92.01~97.01	3000
88.01~92.01	3500
92.01~97.01	3500
92.01~97.01	4000	FJ80(G) FJ80(G)
88.01~92.01	4200
92.01~97.01	4200
NISSAN - Atlas
07.06~	3000
NISSAN - Atlas, Atlac Condor
92.01~99.06	2000	SK4F23 SK4F23
99.06~	2000	SH4F23 SH4F23
07.06~	2000	SQ1F24,SQ2F24 SQ1F24,SQ2F24
92.01~97.08	2700	SP8F23 SP8F23
95.06~99.06	2700	SP4F23 SP4F23
07.06~	3000	SZ1F24,SZ2F24 SZ1F24,SZ2F24
07.06~	3000	SZ4F24,SZ5F24 SZ4F24,SZ5F24
97.08~	3200	SR4F23,SR8F23 SR4F23,SR8F23
NISSAN - Cabstar
89.03~94.05	2000	F22,F23 F22,F23
89.03~97.07	2500 D	F22,F23 F22,F23
NISSAN - PATROL / Ebro / Patrol GR
91.01~93.10	2800	260 260
91.01~96.03	2800	JYL/KYL/WYLG(26 JYL/KYL/WYLG(260)
91.01~93.10	3000	260 260
ISUZU - ELF
99.06~04.05	2000	ASH4F23 ASH4F23
97.08~	3200	ASR8F23 ASR8F23
97.08~	3200	ASR8F23 ASR8F23
99.06~	3200	ASR2F23 ASR2F23
99.06~	3200	ASR2F23 ASR2F23
07.01~	ALL

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
