Description
Ref.:	002 420 96 20
Huari No.:	HR1547

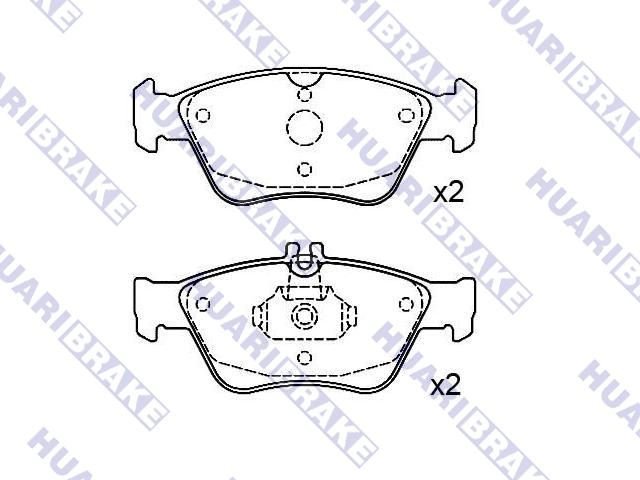

Name:	Brake Pad Set
Unit:	SET
Price:
Front Axle Brake System : ATE Width : 150.1 mm Width 1 : 151.3 mm Height : 66.2 mm Height 1 : 59.8 mm Thickness : 19.8 mm

Model	Engine			Type	CYL	year
MERCEDES BENZ C-CLASS (W202)					0/95 - 5/00
C-CLASS (W202) C 280 (202.028)	M 104.941	2799	193	Saloon	6	5/93 - 5/00
C-CLASS (W202) C 200 Kompressor (202.025)	M 111.944	1998	192	Saloon	4	1/96 - 5/00
C-CLASS (W202) C 240 (202.026)	M 112.910	2398	170	Saloon	6	6/97 - 5/00
C-CLASS (W202) C 280 (202.029)	M 112.920	2799	197	Saloon	6	6/97 - 5/00
C-CLASS (W202) C 200 Kompressor (202.025)	M 111.944	1998	180	Saloon	4	0/95 - 5/00
C-CLASS (W202) C 230 Kompressor (202.024)	M 111.975	2295	193	Saloon	4	0/95 - 5/00
C-CLASS (W202) C 250 Turbo-D (202.128)	OM 605.960	2497	150	Saloon	5	0/95 - 5/00
MERCEDES BENZ C-CLASS Estate (S202)					9/00 - 3/01
C-CLASS T-Model (S202) C 250 T Turbo-D (202.188)	OM 605.960	2497	150	Estate	5	6/96 - 3/01
C-CLASS T-Model (S202) C 230 T Kompressor (202.085)	M 111.975	2295	193	Estate	4	6/97 - 9/00
C-CLASS T-Model (S202) C 240 T (202.086)	M 112.910	2398	170	Estate	6	6/97 - 9/00
C-CLASS T-Model (S202) C 280 T (202.089)	M 112.920	2799	197	Estate	6	6/97 - 3/01
C-CLASS T-Model (S202) C 200 T Kompressor (202.087)	M 111.956	1998	163	Estate	4	9/00 - 3/01
C-CLASS T-Model (S202) C 240 T (202.088)	M 112.915	2597	170	Estate	6	9/00 - 3/01
MERCEDES BENZ CLK (C208)					6/00 - 6/02
CLK (C208) 200 (208.335)	M 111.941	1998	136	Coupe	4	6/97 - 6/02
CLK (C208) 200 Kompressor (208.345)	M 111.944	1998	192	Coupe	4	6/97 - 6/00
CLK (C208) 230 Kompressor (208.347)	M 111.973	2295	193	Coupe	4	6/97 - 6/00
CLK (C208) 200 Kompressor (208.344)	M 111.956	1998	163	Coupe	4	6/00 - 6/02
CLK (C208) 230 Kompressor (208.348)	M 111.982	2295	197	Coupe	4	6/00 - 6/02
MERCEDES BENZ CLK Convertible (A208)					3/98 - 3/02
CLK Convertible (A208) 200 (208.435)	M 111.941	1998	136	Convertible	4	3/98 - 3/02
MERCEDES BENZ E-CLASS (W210)					1/96 - 3/02
E-CLASS (W210) E 200 (210.035)	M 111.942	1998	136	Saloon	4	6/95 - 8/00
E-CLASS (W210) E 290 Turbo-D (210.017)	OM 602.982	2874	129	Saloon	5	3/96 - 7/99
E-CLASS (W210) E 220 D	OM 604.912	2155	75	Saloon	4	5/96 - 3/02
E-CLASS (W210) E 220 D (210.004)	OM 604.912	2155	95	Saloon	4	6/95 - 7/99
E-CLASS (W210) E 240 (210.061)	M 112.911	2398	170	Saloon	6	6/97 - 8/00
E-CLASS (W210) E 230 (210.037)	M 111.970	2295	150	Saloon	4	6/95 - 6/97
E-CLASS (W210) E 250 Turbo-D (210.015)	OM 605.962	2497	150	Saloon	5	6/97 - 7/99
E-CLASS (W210) E 200 CDI (210.007)	OM 611.961	2151	102	Saloon	4	6/98 - 3/02
E-CLASS (W210) E 220 CDI (210.006)	OM 611.961	2151	125	Saloon	4	6/98 - 7/99
E-CLASS (W210) E 200 CDI (210.007)	OM 611.961	2148	116	Saloon	4	7/99 - 3/02
E-CLASS (W210) E 220 CDI (210.006)	OM 611.961	2148	143	Saloon	4	7/99 - 3/02
E-CLASS (W210) E 250 D (210.010)	OM 605.912	2497	113	Saloon	5	6/95 - 7/99
E-CLASS (W210) E 200 Kompressor (210.048)	M 111.957	1998	163	Saloon	4	8/00 - 3/02
E-CLASS (W210) E 240 (210.062)	M 112.914	2597	170	Saloon	6	8/00 - 3/02
E-CLASS (W210) E 300 D (210.020)	OM 606.912	2996	136	Saloon	6	6/95 - 6/97
E-CLASS (W210) E 200 D (210.003)	OM 604.917	1997	88	Saloon	4	1/96 - 3/02
MERCEDES BENZ E-CLASS Estate (S210)					8/00 - 3/03
E-CLASS T-Model (S210) E 200 T (210.235)	M 111.942	1998	136	Estate	4	6/96 - 8/00
E-CLASS T-Model (S210) E 230 T (210.237)	M 111.970	2295	150	Estate	4	6/96 - 6/97
E-CLASS T-Model (S210) E 250 T D (210.210)	OM 605.912	2497	113	Estate	5	6/96 - 7/99
E-CLASS T-Model (S210) E 290 T Turbo-D (210.217)	OM 602.982	2874	129	Estate	5	6/96 - 7/99
E-CLASS T-Model (S210) E 240 T (210.261)	M 112.911	2398	170	Estate	6	6/97 - 3/03
E-CLASS T-Model (S210) E 250 T Turbo-D (210.215)	OM 605.962	2497	150	Estate	5	6/97 - 7/99
E-CLASS T-Model (S210) E 220 T CDI (210.206)	OM 611.961	2151	125	Estate	4	6/98 - 7/99
E-CLASS T-Model (S210) E 220 T CDI (210.206)	OM 611.961	2148	143	Estate	4	7/99 - 3/03
E-CLASS T-Model (S210) E 200 T Kompressor (210.248)	M 111.957	1998	163	Estate	4	8/00 - 3/03
E-CLASS T-Model (S210) E 240 T (210.262)	M 112.914	2597	170	Estate	6	8/00 - 3/03
MERCEDES BENZ SLK (R170)					3/00 - 4/04
SLK (R170) 200 (170.435)	M 111.946	1998	136	Convertible	4	9/96 - 3/00
SLK (R170) 230 Kompressor (170.447)	M 111.973	2295	193	Convertible	4	9/96 - 3/00
SLK (R170) 200 Kompressor (170.445)	M 111.943	1998	192	Convertible	4	0/96 - 3/00
SLK (R170) 200 Kompressor (170.444)	M 111.958	1998	163	Convertible	4	3/00 - 4/04
SLK (R170) 230 Kompressor (170.449)	M 111.983	2295	197	Convertible	4	3/00 - 4/04

Application

MERCEDES-BENZ C230 1999-2000
MERCEDES-BENZ C280 1996-2000
MERCEDES-BENZ C36 AMG 1996-1997
MERCEDES-BENZ E300 1996-1997
MERCEDES-BENZ SLK230 1998-2004

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
