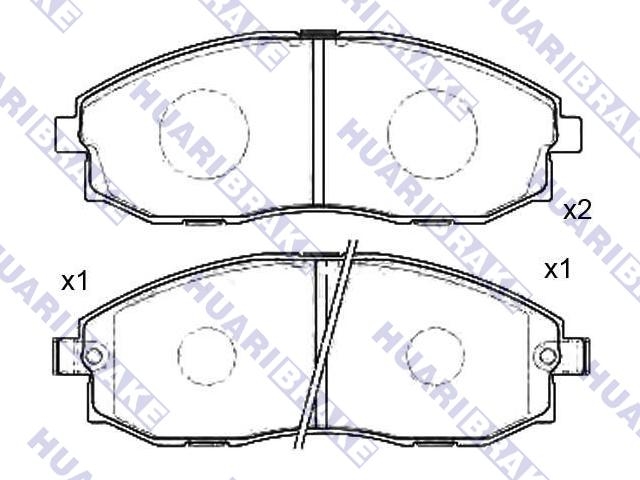

Description 58101-4AA00 HR1529 Brake Pad Set SET Front Axle
Brake System : Mando
Width : 147 mm
Height : 53.8 mm
Thickness : 17 mm
| Model | Engine | Chassis | Type | CYL | year | ||
|---|---|---|---|---|---|---|---|
| HYUNDAI H-1 Box (A1) | 3/00 - 4/04 | ||||||
| HYUNDAI H-1 Bus (KMF) | 0/97 - 0/02 | ||||||
| HYUNDAI H-1 Platform/Chassis | 6/00 - 0/05 | ||||||
| HYUNDAI PORTER Box | 3/96 - 4/04 | ||||||
| HYUNDAI PORTER Bus | 3/96 - 4/04 | ||||||
| HYUNDAI PORTER Pickup | 3/96 - 4/04 | ||||||
| HYUNDAI STAREX (H1) | 1/01 - 4/04 | ||||||
| JAC REFINE M5 I MPV | 2/02 - 2/08 | ||||||
| JAC REIN Closed Off-Road Vehicle | 2/06 - / | ||||||
Application
HYUNDAI JAC Refine (China) 2002-2013
- Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system - Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
- Rear brakes is recommended to replace within 5-7 km
- Replace the Disc brake when follow situation happen:
- 1.Sensor alarm;
- 2.Friction materials thickness less than 3mm;
- 3.Friction materials becomes contaminated with brake fluid;
- 4.Uneven wear within a set;
- Replace the brake rote when follow situation happen:
- 1.Vibrate when braking;
- 2.Car vehicle performance more than 60000Km and braking unstable;
- 3.Disc brake thickness wear more than 2mm;
