Description
Ref.:	04495-26180
Huari No.:	HRK2330

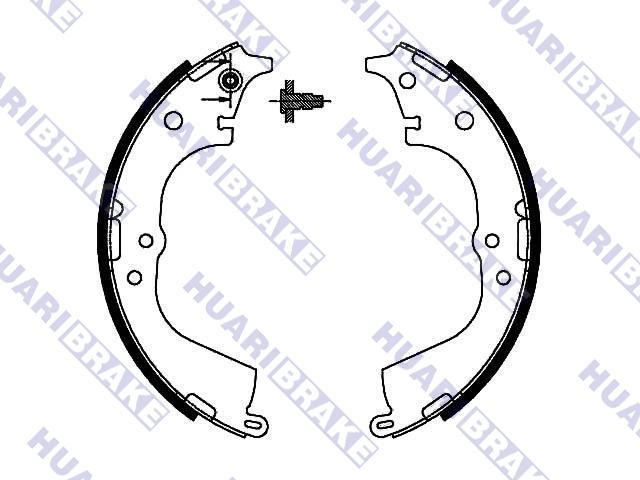

Name:	Brake Shoe Set
Unit:	SET
Price:
Rear Axle Diameter : 270 mm Width : 58 mm

Model	Engine			Type	CYL	year
JINBEI (BRILLIANCE) GRANSE MPV					1/07 - /
GRANSE MPV 2.0	4G20D4L	1977	125	MPV	4	1/07 - /
TOYOTA HIACE III Box (_H10_)					8/89 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.0 (RCH102_, RCH112_)	1RZ	1998	101	Box	4	2/90 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.4 (RZH10)	2RZ-E	2438	120	Box	4	8/89 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.4 D (LH10_, LH11_)	2L	2446	75	Box	4	8/89 - 8/95
TOYOTA HIACE III Wagon (_H10_)					8/87 - 2/04
HIACE III Wagon (_H1_) 2.0 (RZH102)	1RZ	1998	101	Bus	4	8/89 - 4/98
HIACE III Wagon (_H1_) 2.4 (RZH103)	2L	2438	120	Bus	4	8/89 - 8/95
HIACE III Wagon (_H1_) 2.4 D (LH102)	2L	2446	75	Bus	4	8/89 - 8/95
HIACE III Wagon (_H1_) 2.4 D (LH5_, LH6_, LH7_, LH10_, LH11_)	2L	2446	78	Bus	4	8/87 - 2/04
TOYOTA HIACE IV Box (_H1_, _H2_)					1/01 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 (RCH12_, RCH22_)	2RZ-E	2438	116	Box	4	8/95 - 2/05
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	143	Box	4	4/98 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.7 4WD (RCH19_, RCH29_)	3RZ-FE	2694	144	Box	4	4/98 - /
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 D (LXH12_, LXH22_)	2L	2446	79	Box	4	8/95 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 TD (LXH12_, LXH22_)	2L-T	2446	90	Box	4	8/95 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 TD 4WD (LXH18_, LXH28_)	2L-T	2446	90	Box	4	8/95 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D (KLH12_, KLH22_)	2KD-FTV	2494	88	Box	4	1/01 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D (KLH12_, KLH22_)	2KD-FTV	2494	102	Box	4	1/01 - 8/06
TOYOTA HIACE IV Wagon (_H1_, _H2_)					4/98 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	144	Bus	4	1/01 - 2/06
HIACE IV Bus (_H1_, _H2_) 2.4 D (LH10_, LH11_, LXH12_)	2L-T	2446	75	Bus	4	7/99 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.4 D (LH10_, LH11_, LXH12_, LXH22_)	2L	2446	79	Bus	4	8/95 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.4 TD (LXH12_, LXH22_)	2L-T	2446	90	Bus	4	8/95 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.4 TD 4WD (H18/28)	2L-T	2446	90	Bus	4	8/95 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.5 D-4D (KLH12_)	2KD-FTV	2494	88	Bus	4	1/01 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.5 D-4D (KLH12_, KLH22_)	2KD-FTV	2494	102	Bus	4	1/01 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.4 (RCH12_, RCH22_)	2RZ-E	2438	115	Bus	4	8/95 - 4/98
HIACE IV Bus (_H1_, _H2_) 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	143	Bus	4	4/98 - 1/01
HIACE IV Bus (_H1_, _H2_) 2.7 4WD (RCH19_)	2L-T	2694	143	Bus	4	4/98 - 8/06
TOYOTA HILUX V Pickup (_N_, KZN1_, VZN1_)					1/92 - 8/97
HILUX V Pickup (_N_, KZN1_, VZN1_) 2.4 D	2L	2446	79	Pickup	4	3/95 - 8/97
HILUX V Pickup (_N_, KZN1_, VZN1_) 2.4 D (LN5_, LN8_, LN9_, LN14_, LN15_)	2L	2446	80	Pickup	4	1/92 - 8/97
TOYOTA HILUX VI Pickup (_N1_)					8/97 - 2/06
HILUX VI Pickup (_N1_) 2.4 D (LN150, LN145)	2L	2446	75	Pickup	4	8/97 - 2/06
VOLKSWAGEN TARO					7/94 - 3/97
TARO 2.4 D	2L	2446	83	Pickup	4	6/89 - 3/97
TARO 2.4 D	2L	2446	79	Pickup	4	7/94 - 3/97

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
